Across Europe, ports are rapidly expanding shore connection infrastructure to meet AFIR compliance and emissions reduction targets. At the same time, FuelEU Maritime is creating direct financial exposure for operators continuing auxiliary engine operation at berth.
For many operators, the commercial drivers are now converging, including AFIR shore connection requirements, ESG reporting pressure, charterer decarbonisation expectations, port emissions restrictions, and fleet lifetime extension strategies.
Modern OPS retrofit projects increasingly combine shore connection integration with switchboard upgrades, PMS modifications, automation improvements, hybrid readiness, and future battery integration capability. As a result, shore power retrofit is becoming one of the most time-sensitive electrical retrofit segments in commercial shipping.
The Alternative Fuels Infrastructure Regulation (AFIR) establishes mandatory shore power infrastructure requirements across major EU ports.
In practical terms, AFIR requires many TEN T ports to provide shore connection capability for eligible vessels by 2030.
This primarily affects:
For many vessel categories above 5,000 GT, shore connection capability will increasingly become an operational expectation when calling at compliant EU ports.
For container shipping in particular, the regulation targets broad coverage across TEN T core network ports, making vessel-side readiness increasingly important for long-term commercial flexibility. The vessel itself must also be technically prepared to receive shore power safely, reliably, and in compliance with Class requirements.
A complete shore power retrofit involves significantly more than adding a shore connection cabinet.
A compliant OPS retrofit integrates electrical engineering, automation, protection philosophy, Class approval, and operational power management into the vessel’s existing electrical architecture.

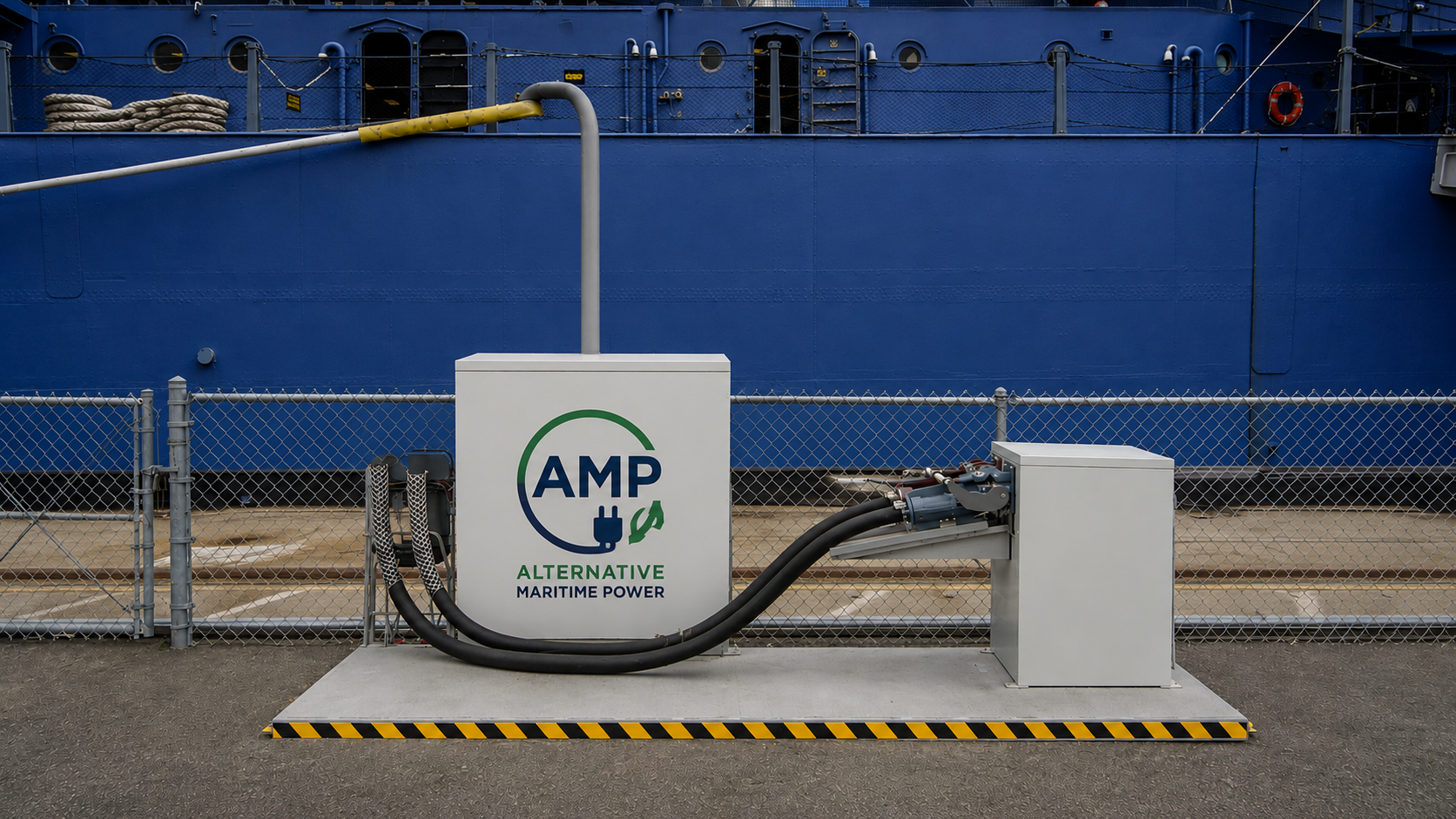

The shore connection panel forms the vessel interface between the port side infrastructure and the onboard electrical system.
Depending on vessel layout and operational requirements, the connection arrangement may be integrated within the engine room, a dedicated OPS room, or an external deckhouse structure.
Systems are engineered in accordance with IEC IEEE 80005 requirements for High Voltage and Low Voltage shore connection applications.
Typical considerations include:
Frequency conversion is required where a vessel's electrical frequency differs from the shore supply infrastructure, typically between 50 Hz and 60 Hz systems.
Converter sizing depends on:
Typical converter ranges vary between 1 MVA and 20 MVA depending on vessel operational demand and load profile.
Electrical engineering review also considers:
Transformer integration forms a critical part of shore power load transfer and voltage adaptation.
The transformer arrangement influences:
Where future hybridisation or BESS integration is anticipated, transformer and bus architecture may also be configured to support future expansion pathways.
OPS retrofit often requires significant modification of the existing main switchboard architecture.
The scope commonly includes:
Engineering review focuses on maintaining safe and reliable vessel operation during both shore connected and generator supplied operating modes.
Power Management System integration is essential for safe shore power operation.
OPS transfer sequences must be carefully controlled to avoid blackout events, nuisance tripping, load instability, as well as synchronisation faults.
Usually, PMS modifications include:
Where possible, integration is performed within the vessel’s existing PMS platform to minimise operational disruption and additional hardware complexity.
One of the most technically sensitive aspects of OPS retrofit is the integration between shore-side and vessel-side earthing philosophy. Many vessels operate onboard IT electrical systems, while shore infrastructure commonly uses TN S configuration. Safe integration between these systems requires careful engineering review to ensure reliable operation during both shore-connected and generator-supplied modes.
OPS protection engineering typically includes evaluation of galvanic isolation requirements, fault current behaviour, protection selectivity, earthing transformer arrangement, grounding continuity, safety interlocks, and relay coordination settings. The overall protection philosophy must remain fully compliant with Class requirements while maintaining operational reliability during connection, synchronisation, transfer, and disconnection sequences.
Cruise vessels, ferries, RoPax vessels, and container feeders typically show the strongest operational and commercial justification due to frequent EU port calls and higher hotel load.
Not always. Certain installation activities may be completed during operation depending on vessel configuration, although many projects are coordinated during scheduled drydock periods.
High Voltage systems typically follow IEC IEEE 80005 1 while Low Voltage systems align with IEC IEEE 80005 3 requirements.
No. Frequency conversion depends on the difference between vessel and shore electrical systems.
Yes. Many operators combine OPS retrofit with hybrid readiness, battery integration, and PMS upgrades within the same drydock period.
